☸️ Setting up a K3s cluster
Abstract
How to setup a K3s cluster on physical nodes. I will be using 5 laptops with Ubuntu 24.04 LTS installed on them.
Prerequisites
1. Setting up the first node
Start with installing K3S.
To check if K3S is running:
We can also see that helm and Traefik is running:
Now we need to define our node as the verify first server node of our new cluster. For this we can set the parameter "cluster-init" to true.
Add the following:
Restart K3S:
2. Access the cluster from your local workstation
On Windows: https://kubernetes.io/docs/tasks/tools/install-kubectl-windows/
In Cmd run (change to the latest version):
Create a directory for the kubeconfig:
Navigate to that directory:

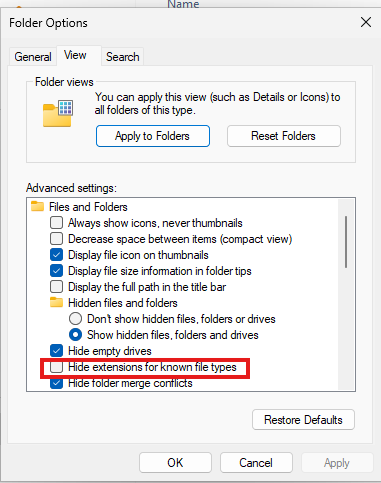

Make sure that in the Folder Options, you have unchecked "Hide extensions for known file types"
In that directory create a file named config.txt
On a server node:
Copy the output in the config.txt file on your windows machine. And if needed replace the line that looks like this:
with the IP of your k3s node
Rename the config.txt by removing the ".txt" part, so that is just file:
Now in CMD or PowerShell, test the connection:
3. Install helm on your local workstation
From your workstation, in a terminal, run the following to install helm:
4. Use metallb instead of the built-in loadbalancer
Instead of using the built-in loadbalancer, we will install the metallb loadbalancer.
On the k3s cluster execute the following:
Add the following:
Restart K3S:
From the terminal in your windows workstation run:
Let's create a separate namespace for metallb:
And install metallb in the namespace:
5. Configure metallb
Let's create a manifest file:
In the file add the following:
apiVersion: metallb.io/v1beta1
kind: IPAddressPool
metadata:
name: default-pool
namespace: metallb-namespace
spec:
addresses:
- 192.168.70.100-192.168.70.140
---
apiVersion: metallb.io/v1beta1
kind: L2Advertisement
metadata:
name: k3s-l2
namespace: metallb-namespace
spec:
ipAddressPools:
- default-pool
Let's explain the above: - The first part declares which IP the Load Balancer services can use - The second part advertises those IP ranges
6. Deploy a test webpage
Create a namespace for it:
With the following:
apiVersion: apps/v1
kind: Deployment
metadata:
name: nginx-test
namespace: test-nginx
spec:
replicas: 1
selector:
matchLabels:
app: nginx-test
template:
metadata:
labels:
app: nginx-test
spec:
containers:
- name: nginx
image: nginx:alpine
ports:
- containerPort: 80
volumeMounts:
- name: html
mountPath: /usr/share/nginx/html
volumes:
- name: html
configMap:
name: nginx-html
---
apiVersion: v1
kind: ConfigMap
metadata:
name: nginx-html
namespace: test-nginx
data:
index.html: |
<html>
<head><title>Hello NGINX</title></head>
<body>
<h1>Hello from k3s + MetalLB!</h1>
</body>
</html>
- Deployment runs a single NGINX pod.
- ConfigMap provides a custom
index.html. - volumeMounts mounts the HTML into NGINX’s default directory.
Create the loadbalancer service:
apiVersion: v1
kind: Service
metadata:
name: nginx-test-lb
namespace: test-nginx
spec:
selector:
app: nginx-test
ports:
- protocol: TCP
port: 80
targetPort: 80
type: LoadBalancer
Example output:
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
nginx-test-lb LoadBalancer 10.43.34.214 192.168.10.21 80:32195/TCP 48s
Now you should be able to browse to the external IP above and see a simple webpage.
To delete our test, you can simply delete the manifest files:
rm /var/lib/rancher/k3s/server/manifests/nginx-deployment.yaml
rm /var/lib/rancher/k3s/server/manifests/nginx-service.yaml
Verify that the pod and service are gone:
To delete the namespace:
7. Join other nodes
To get the cluster join token:
Then on your new server nodes, use the command:
curl -sfL https://get.k3s.io | K3S_TOKEN=SECRET sh -s - server --disable servicelb --disable=traefik --server https://<ip or hostname of server1>:6443
Then on your new worker nodes, use the command:
curl -sfL https://get.k3s.io | K3S_TOKEN=SECRET sh -s - agent --server https://<ip or hostname of server1>:6443
8. Use Traefik instead of the built-in Traefik ingress controller
We need to start by disabling the built-in Traefik ingress controller.
Add the following:
Restart K3S:
Add the Traefik repository:
Create a namespace for Traefik:
Traefik is configured using a values.yaml file, which we will store on our Windows workstation. I will save mine under C:\Users\'user'.kube\traefik (Do note that I might be recommended to keep a backup of this file, as in its current state it is local only).
Paste in the default values file, which you can find at https://artifacthub.io/packages/helm/traefik/traefik. There you can select on the right: "Default values". Copy these over.
Now we can install Traefik, in the namespace Traefik, with the values.yaml file:
Example output
C:\Users\cedric>helm install traefik traefik/traefik -f C:\Users\cedric\.kube\traefik\values.yml -n traefik
level=WARN msg="unable to find exact version; falling back to closest available version" chart=traefik requested="" selected=37.4.0
NAME: traefik
LAST DEPLOYED: Thu Dec 4 21:51:02 2025
NAMESPACE: traefik
STATUS: deployed
REVISION: 1
DESCRIPTION: Install complete
TEST SUITE: None
NOTES:
traefik with docker.io/traefik:v3.6.2 has been deployed successfully on traefik namespace !
If you want to make changes to Traefik afterwards, you can do this by changing values in the values.yaml file and apply the changes by running:
helm upgrade traefik traefik/traefik --namespace=traefik --values C:\Users\cedric\.kube\traefik\values.ym
To see if Traefik is deployed:
Example output:
C:\Users\cedric>kubectl -n traefik get all
NAME READY STATUS RESTARTS AGE
pod/traefik-59ddf46749-tvqq2 1/1 Running 0 3m30s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/traefik LoadBalancer 10.43.83.229 192.168.10.21 80:30586/TCP,443:30246/TCP 3m30s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/traefik 1/1 1 1 3m30s
NAME DESIRED CURRENT READY AGE
replicaset.apps/traefik-59ddf46749 1 1 1 3m30s
9. Traefik Ingress Route
Lets setup a simple manifest of nginx and create an ingress route. On my Windows workstation I created a test deployment file at C:\Users\cedric.kube\test\test.yml
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
run: nginx
name: nginx-deploy-test
spec:
replicas: 1
selector:
matchLabels:
run: nginx-test
template:
metadata:
labels:
run: nginx-test
spec:
volumes:
- name: webdata
emptyDir: {}
initContainers:
- name: web-content
image: busybox
volumeMounts:
- name: webdata
mountPath: "/webdata"
command: ["/bin/sh", "-c", 'echo "<h1>I am a test</font></h1>" > /webdata/index.html']
containers:
- image: nginx
name: nginx
volumeMounts:
- name: webdata
mountPath: "/usr/share/nginx/html"
By running the following command, we create a temporary deployment:
Example output:
C:\Users\cedric>kubectl get all
NAME READY STATUS RESTARTS AGE
pod/nginx-deploy-test-5b8df89786-x2xr9 1/1 Running 0 2m58s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/kubernetes ClusterIP 10.43.0.1 <none> 443/TCP 45h
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/nginx-deploy-test 1/1 1 1 2m58s
NAME DESIRED CURRENT READY AGE
replicaset.apps/nginx-deploy-test-5b8df89786 1 1 1 2m58s
Now we need to expose this deployment:
And we can confirm this here:
C:\Users\cedric>kubectl get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes ClusterIP 10.43.0.1 <none> 443/TCP 45h
nginx-deploy-test ClusterIP 10.43.140.38 <none> 80/TCP 43s
Now for the ingress route, create a file C:\Users\cedric.kube\test\ingressroute.yml with:
---
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
name: nginx
namespace: default
spec:
entryPoints:
- web
routes:
- match: Host(`nginx.example.com`)
kind: Rule
services:
- name: nginx-deploy-test
port: 80
and deploy it
We can verify this:
Now you need to add 'nginx.example.com' in your DNS server (or add it on your local workstation) so that it points to 192.168.10.20 (where traefik is exposed as shown above).
Now if you go to nginx.example.top, you should see the nginx deployment.
