📣 How to replace a failed disk in a ZFS pool
(Written November 2025)
Abstract
How to replace a failed disk in a ZFS pool. This guide demonstrates how to do this on a Proxmox cluster.
1. Replace the faulty drive

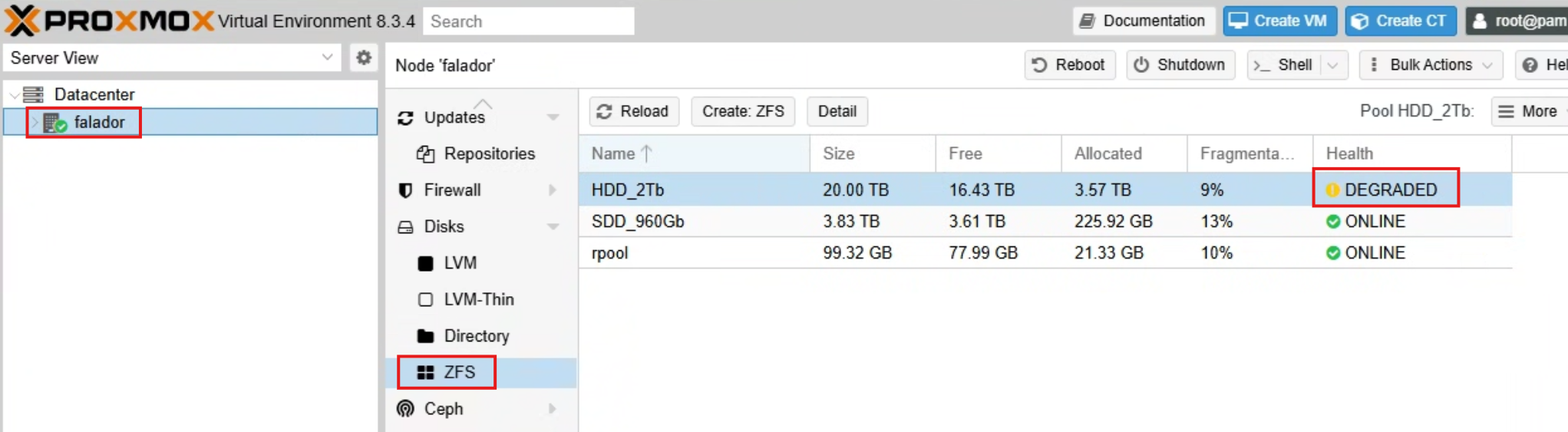

In the Proxmox ZFS overview, you can see that one of the ZFS pools is degraded:
Start by replacing the failed physical drive.
2. Identify the replacement drive
Go to the shell and check the ZFS pool status:
The output will look something like this:
root@falador:~# zpool status
pool: HDD_2Tb
state: DEGRADED
status: One or more devices could not be used because the label is missing or
invalid. Sufficient replicas exist for the pool to continue
functioning in a degraded state.
action: Replace the device using 'zpool replace'.
see: https://openzfs.github.io/openzfs-docs/msg/ZFS-8000-4J
scan: resilvered 1004K in 00:00:01 with 0 errors on Sat Nov 8 21:09:34 2025
config:
NAME STATE READ WRITE CKSUM
HDD_2Tb DEGRADED 0 0 0
raidz3-0 DEGRADED 0 0 0
ata-TOSHIBA_MG03ACA200_Z63EKCUTF ONLINE 0 0 0
ata-SEAGATE_ST2000NM0033_Z1X4LXJT ONLINE 0 0 0
ata-TOSHIBA_MG03ACA200_Z63EKCUWF ONLINE 0 0 0
ata-SEAGATE_ST2000NM0033_Z1X4LW0D ONLINE 0 0 0
wwn-0x500003977c3800c3 ONLINE 0 0 0
wwn-0x5000c5007b12fdb0 ONLINE 0 0 0
wwn-0x500003977bd8025c ONLINE 0 0 0
wwn-0x500003977bd80267 ONLINE 0 0 0
7734569190555848310 UNAVAIL 0 0 0 was /dev/disk/by-id/wwn-0x5000c5007b12fd48-part1
wwn-0x5000c5007b12fc4c ONLINE 0 0 0
errors: No known data errors
Copy the ID of the failed drive, we will need it later. In this case the ID of the failed drive is: "7734569190555848310"
The following command will show all the disks and their partitions. Identify the disk that has no partitions, as that will be the new drive
In the output below, you can see that "sdg" has no partitions and is the new drive.
root@falador:~# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
sda 8:0 0 93.2G 0 disk
├─sda1 8:1 0 1007K 0 part
├─sda2 8:2 0 512M 0 part
└─sda3 8:3 0 92.7G 0 part
sdb 8:16 0 894.3G 0 disk
├─sdb1 8:17 0 894.2G 0 part
└─sdb9 8:25 0 8M 0 part
sdc 8:32 0 894.3G 0 disk
├─sdc1 8:33 0 894.2G 0 part
└─sdc9 8:41 0 8M 0 part
sdd 8:48 0 894.3G 0 disk
├─sdd1 8:49 0 894.2G 0 part
└─sdd9 8:57 0 8M 0 part
sde 8:64 0 894.3G 0 disk
├─sde1 8:65 0 894.2G 0 part
└─sde9 8:73 0 8M 0 part
sdf 8:80 0 1.8T 0 disk
├─sdf1 8:81 0 1.8T 0 part
└─sdf9 8:89 0 8M 0 part
sdg 8:96 0 1.8T 0 disk
sdh 8:112 0 1.8T 0 disk
├─sdh1 8:113 0 1.8T 0 part
└─sdh9 8:121 0 8M 0 part
Now we want to know the ID of that disk. You can do this by using the command (replace the disk name):
root@falador:~# ls -l /dev/disk/by-id/ | grep sdg
lrwxrwxrwx 1 root root 9 Nov 10 18:38 wwn-0x5000cca224d31cce -> ../../sdg
In this scenario, the disk ID is "wwn-0x5000cca224d31cce"
Now we can tell the zpool which disk to use, to replace the old disk.
Example:
The resilvering process is now started to include the new drive in the pool. You can check this by using:
Example output:
root@falador:~# zpool status
pool: HDD_2Tb
state: DEGRADED
status: One or more devices is currently being resilvered. The pool will
continue to function, possibly in a degraded state.
action: Wait for the resilver to complete.
scan: resilver in progress since Wed Nov 12 23:54:56 2025
1.05T / 3.25T scanned at 3.38G/s, 83.8G / 3.04T issued at 271M/s
10.5G resilvered, 2.69% done, 03:11:05 to go
config:
NAME STATE READ WRITE CKSUM
HDD_2Tb DEGRADED 0 0 0
raidz3-0 DEGRADED 0 0 0
ata-TOSHIBA_MG03ACA200_Z63EKCUTF ONLINE 0 0 0
ata-SEAGATE_ST2000NM0033_Z1X4LXJT ONLINE 0 0 0
ata-TOSHIBA_MG03ACA200_Z63EKCUWF ONLINE 0 0 0
ata-SEAGATE_ST2000NM0033_Z1X4LW0D ONLINE 0 0 0
wwn-0x500003977c3800c3 ONLINE 0 0 0
wwn-0x5000c5007b12fdb0 ONLINE 0 0 0
wwn-0x500003977bd8025c ONLINE 0 0 0
wwn-0x500003977bd80267 ONLINE 0 0 0
replacing-8 DEGRADED 0 0 0
7734569190555848310 UNAVAIL 0 0 0 was /dev/disk/by-id/wwn-0x5000c5007b12fd48-part1
wwn-0x5000cca224d31cce ONLINE 0 0 0 (resilvering)
wwn-0x5000c5007b12fc4c ONLINE 0 0 0
errors: No known data errors
Now simply wait for the resilvering process to complete and your ZFS pool should be back in an 'online' state.
